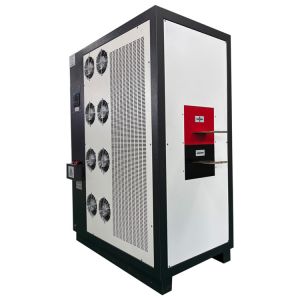

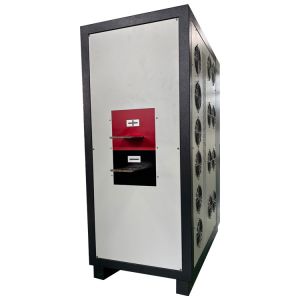

China 12V 6000A Polarity Reversing Rectifier Power Supply for Hard Chrome Plating, 400V 3-Phase Input wholesale

12V 6000A Polarity Reversing Rectifier Power Supply for Hard Chrome Plating, 400V 3-Phase Input

Name: 12V 6000A Polarity Reversing Rectifier Power Supply for Hard Chrome Plating 400V 3Phase Input
Brand: Xingtongli
Price: 10300 USD

Ask Latest Price

Video Channel

Brand Name :Xingtongli

Model Number :GKDH12-6000CVC

Certification :CE ISO9001

Place of Origin :China

MOQ :1pcs

Price :10300-12000$/unit

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :200 Set/Sets per Month

Delivery Time :5-30 working days

Packaging Details :strong plywood standard exporting package

Contact Now

Add to Cart

View Product Description

12V 6000A Polarity Reversing Rectifier Power Supply for Hard Chrome Plating, 400V 3-Phase Input

This high-current 12V 6000A polarity reversing rectifier is specially designed for hard chrome plating applications. Featuring a 400V three-phase input, it provides stable, controllable DC power with precise polarity switching, ensuring uniform coating and high efficiency in industrial electroplating processes. Ideal for large-scale plating lines and heavy-duty production.

Technical Specifications

Input Power: Three-phase 400V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-6000A continuously adjustable
- Power: Max.72KW (12V ×6000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
